Solar Garden light

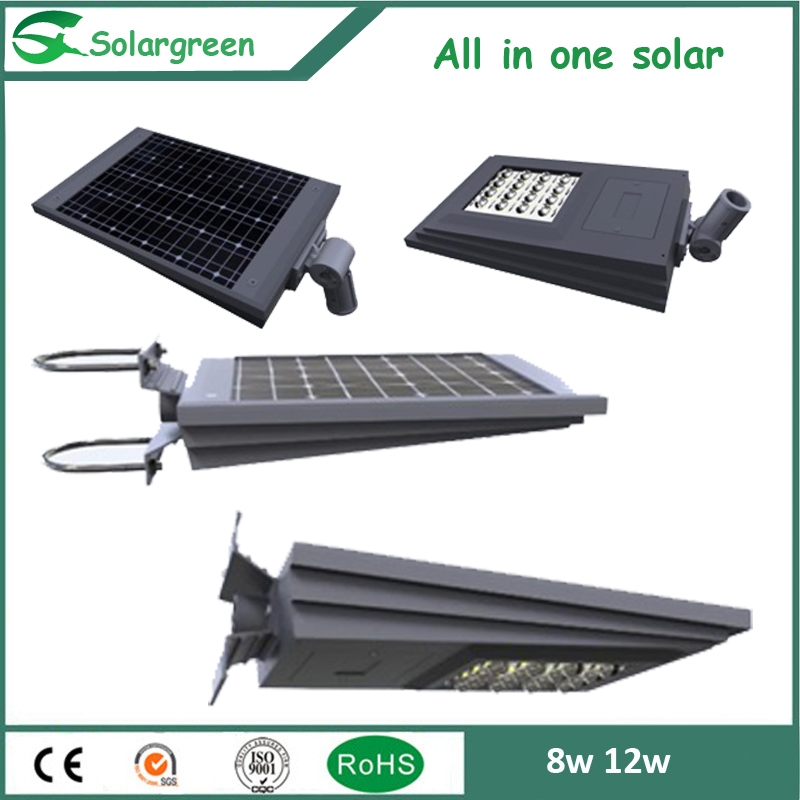

New Multi function 8W 12W solar garden light installed on Wall or Pole

8W 12W Solar Wall Light-New version
  • 1.  Scope of Application

    Installed in all kinds of streets,walls,garden,village road,mining and the places supplied with electric power difficultly ,parks and so on, the solar light make it possible to light the night by the way that solar panel charge the storage battery to supply electricity for the lamp

    <2>. Characteristic Descriptions



    ●   Unique patented design of waterproof structure;

    ●   Conversion and high energy storage efficiency;

    ●   LED light source: Brand highlighting chip, stable and reliable.   Working life of more than 50,000 hours;

    ●     High quality lithium battery assembly cycle life more than 5 years, operating ambient temperature -20℃-60℃ , portable, safe and environmental protection;

    ●   Solar panel:Conversion efficiency 17%-19%, polysilicon / monocrystalline silicon solar panels, long life, normal use for more than 20 years;

    ●   Intelligent control :Normal time+Sensitive+Morning bright design. Multiple intelligent control model can ensure the energy-saving effect and lighting up of lamps.

    ●   INGRESS PROTECTION:IP65;

    ●   Material of lamp body: quality ABS, anti-aging,anti-UV;

    ●   Pole: Q235 quality steel, multilayer coating, dip galvanizing process, fully guard against oxidation and rust;

    ●   The finish lamp’s life span more than 5 years under normal use , 2 years warranty;

    Suitable for venues, walls, gardens and courtyard ,villa and so on

    1. Product Photoelectric parameter

    <1>. Photoelectric parameter



    Product Model

    SGS-WM-330

    Rated Power/Working Power

    20W / 4-6W

    Housing Material

    ABS(Anti-Aging,anti-UV)

    LED&Lens

    2835 1W&lens*20pcs

    Color Temperature

    3000k/4000k/6500k

    Rated Lumen/Working Lumen

    900-1000lm

    Power Factor

    1

    IP

    IP65

    Lumen Flux

    1000lm

    Installation Pipe Diameter

    Ø60mm-90mm

    Installation Height

    3-3.5M

    Size of Lamp

    285*180*47mm

    Consecutive rainy days

    3-5days

    Daily Lighting Time

    4-10hours

    Battery Specifications

    Lithium battery to be chosen &7500mAH

    Solar Panel

    Mono-Silicon 6.5W/ polysilicon 6W

    Control Mode

    Intelligent light control+time control

    Range of Application

    streets ,walls,gardens etc.

    Functions

    solar energy lamp   free of cost

    Lighting Mode

    Automatic mode/ 3 / 6 / 8 hours mode can be chosen

    Warranty

    2 years warranty
