Solar Garden light

< >

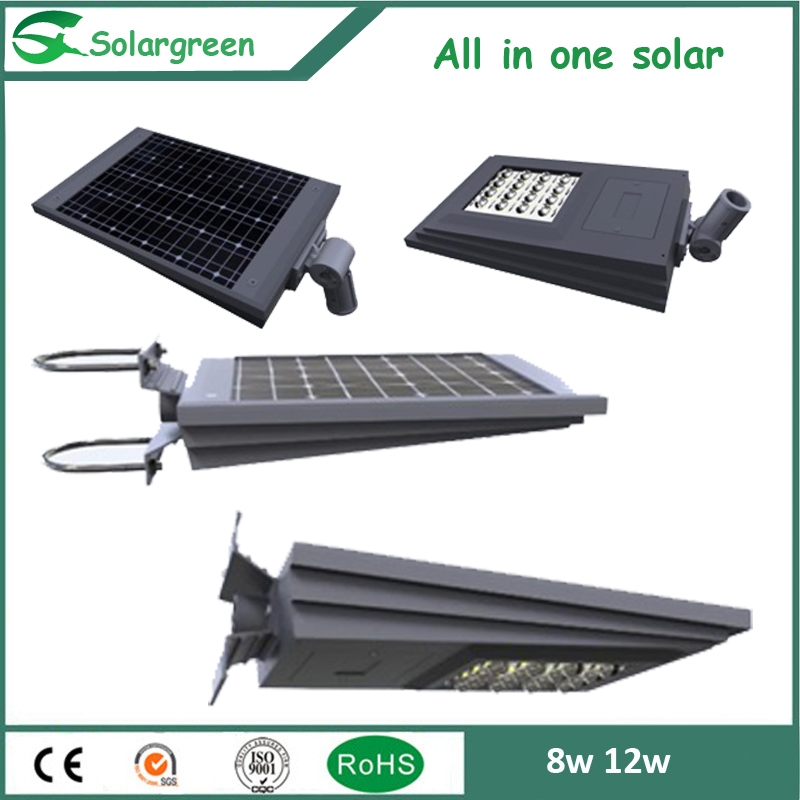

New Multi function 8W 12W solar garden light installed on Wall or Pole

8W 12W Solar Wall Light-New version

1. Scope of Application

Installed in all kinds of streets,walls,garden,village road,mining and the places supplied with electric power difficultly ,parks and so on, the solar light make it possible to light the night by the way that solar panel charge the storage battery to supply electricity for the lamp

<2>. Characteristic Descriptions

● Unique patented design of waterproof structure;

● Conversion and high energy storage efficiency;

● LED light source: Brand highlighting chip, stable and reliable. Working life of more than 50,000 hours;

● High quality lithium battery assembly cycle life more than 5 years, operating ambient temperature -20℃-60℃ ， portable, safe and environmental protection;

● Solar panel:Conversion efficiency 17%-19%, polysilicon / monocrystalline silicon solar panels, long life, normal use for more than 20 years;

● Intelligent control :Normal time+Sensitive+Morning bright design. Multiple intelligent control model can ensure the energy-saving effect and lighting up of lamps.

● INGRESS PROTECTION：IP65；

● Material of lamp body: quality ABS, anti-aging,anti-UV;

● Pole: Q235 quality steel, multilayer coating, dip galvanizing process, fully guard against oxidation and rust;

● The finish lamp’s life span more than 5 years under normal use , 2 years warranty;

Suitable for venues, walls, gardens and courtyard ,villa and so on

1. Product Photoelectric parameter

<1>. Photoelectric parameter

Product Model	SGS-WM-330
Rated Power/Working Power	20W / 4-6W
Housing Material	ABS(Anti-Aging,anti-UV)
LED&Lens	2835 1W&lens*20pcs
Color Temperature	3000k/4000k/6500k
Rated Lumen/Working Lumen	900-1000lm
Power Factor	1
IP	IP65
Lumen Flux	1000lm
Installation Pipe Diameter	Ø60mm-90mm
Installation Height	3-3.5M
Size of Lamp	28518047mm
Consecutive rainy days	3-5days
Daily Lighting Time	4-10hours
Battery Specifications	Lithium battery to be chosen &7500mAH
Solar Panel	Mono-Silicon 6.5W/ polysilicon 6W
Control Mode	Intelligent light control+time control
Range of Application	streets ,walls,gardens etc.
Functions	solar energy lamp free of cost
Lighting Mode	Automatic mode/ 3 / 6 / 8 hours mode can be chosen
Warranty	2 years warranty
